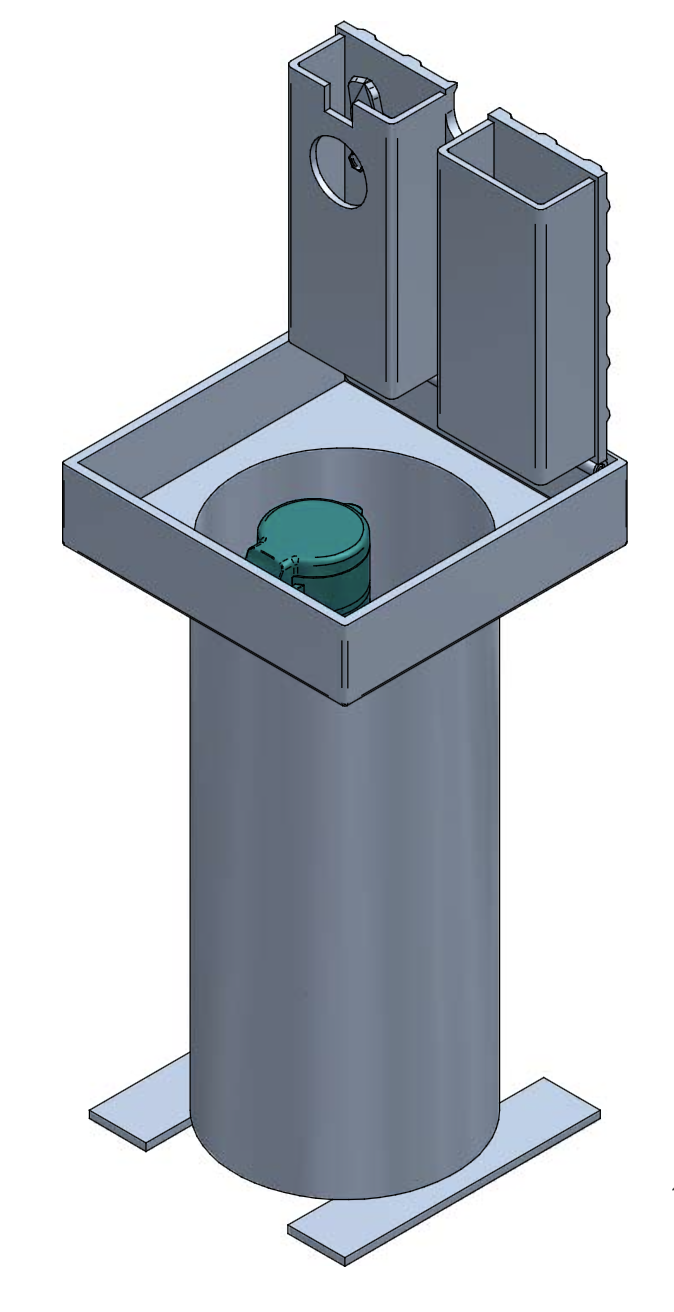

PICCOLINO underfloor distribution system, stainless steel 1.4301 (V2A) 200x200mm, C250, junction box 1010, with coupling Schuko and 2m 3x1.5mm²

‍

Solid stainless steel construction 200x200mm, cover is made channelled sheet (nonslip), lock with a recessed cover-flat stand-off square 8mm made of stainless steel V2A, cable exit flap D=25mm, load capacity up to 250kN, with tube D=154mm, L=400mm

Equipment:

• 1 coupling Schuko 250V - 16A P+N+E
• 2m GIFAS GIFAFLEX 3x1.5mm²
• 1 terminal WOERTZ 6mm² grey
• 1 terminal WOERTZ 6mm² blue
• 1 protective conductor terminal WOERTZ 10mm²
• 1 cable gland M16x1.5 IP68 (cable Ø 4-8mm)
• 2 cable glands M20x1.5 IP68 (cable Ø 6-12mm)

‍

‍

‍
